Application

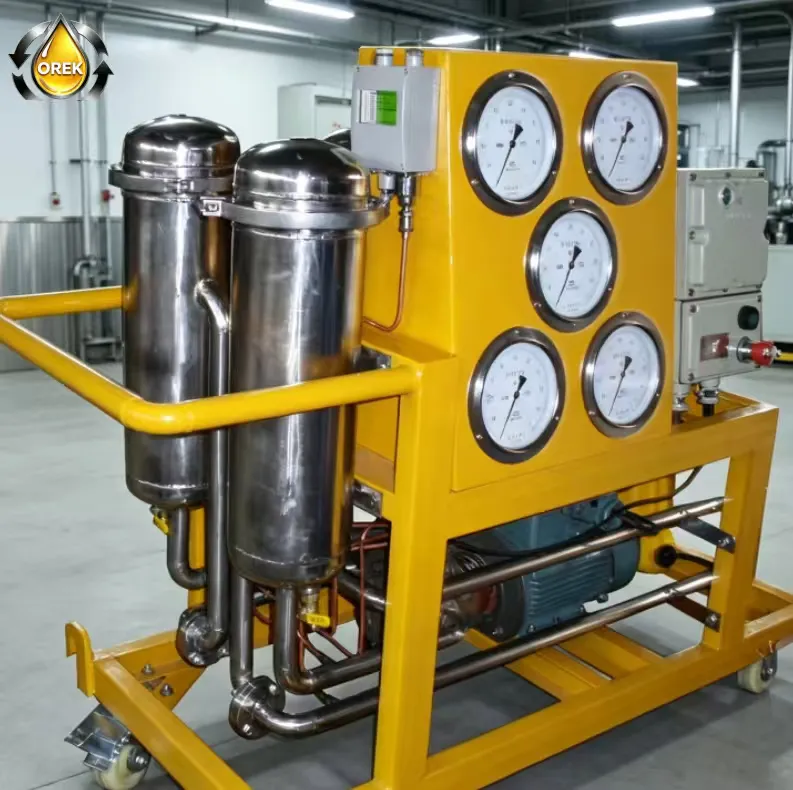

TYK Phosphate Ester Resistant Oil Purifier is a new generation of vacuum EH oil purifier specially designed for the unqualified phosphate ester resistant oil. It removes acid, pigments, gases, moisture and impurities from oil. This machine adopts anti‑acid, anti‑corrosive materials and vacuum oil dehydration, multi‑stage precision filtration, new ion exchange resin deacidification and other net oil purification technologies to effectively ensure that the filtered oil reaches the qualified index. TYK Phosphate Ester Resistant Oil Purifier is widely used in large and medium‑sized metallurgy, gas turbines, thermal power generating units, etc. operating under high temperature and high pressure hydraulic pressure, speed regulation system, phosphate ester resistant oil system, mechanical system, phosphate ester resistant oil hydraulic system, it is suitable for online operation, mobile oil filtration, new Oil filling and other works.

Features

◆ Acid‑resistant, solvent‑resistant, corrosion‑resistant sealing and filtering materials to ensure that the equipment is safe and stable.

◆ All stainless steel tanks, pipes and filter elements are resistant to acids, solvents, corrosion and long life.

◆ Using HY‑PRO dry ion exchange resin material, using chemical ion exchange reaction, to efficiently absorb the acidic substances in EH oil.

◆ Excellent heating system: carbon fiber electric heater with long service life, low heating surface load, linear temperature rise, preventing oil cracking, keeping oil uniform heating.

◆ Automatic control to realize unattended, safe and stable working.

◆ Safety interlock protection: oil pump, vacuum pump, heater interlock protection

◆ Good comprehensive performance: This machine has the advantages of low noise, easy operation, long maintenance interval, low energy consumption, low operating cost, high oil filtration efficiency, long lifetime, etc.

Optional Device:

A‑ Optional PLC control.

B‑ Oil pump set, vacuum pump set, filter element and electrical parts are selected imported brand products.

C‑ Flow meter, online moisture monitoring

D‑ Select the appropriate explosion‑proof level according to the working environment (ExdII BT4 / ExdII CT4)
