Application

Disc type centrifugal oil purifier purifies gasoline, diesel oil and marine heavy fuel oil. It removes water and impurities to reduce engine wear and extend service life.It also clarifies lubricating oil, hydraulic oil and turbine oil. It can separate heterogeneous suspensions and emulsions in other industries.

Features

1. High separation factor centrifugal technology, dehydration efficiency 3~5 times higher than traditional filtration.

2. Continuous removal of solid impurities and water.

3. Low vibration, low noise, automatic sludge discharge, continuous operation.

4. Stainless steel contact parts between bowl and oil.

5. .Compact, movable, easy operation. Ideal supporting equipment for ship maintenance.Manufactured according to GB/T5745-2002 Marine Disc Separator standard.

Principle

In a high-speed rotating bowl, substances of different densities separate under centrifugal force. Heavy solid particles gather on the bowl wall while light liquid stays inside.Stacked discs create thin separation layers to shorten sediment distance and improve separation efficiency.Clean oil is discharged by light-phase centripetal pump, water by heavy-phase centripetal pump, and impurities are discharged via sludge outlet.

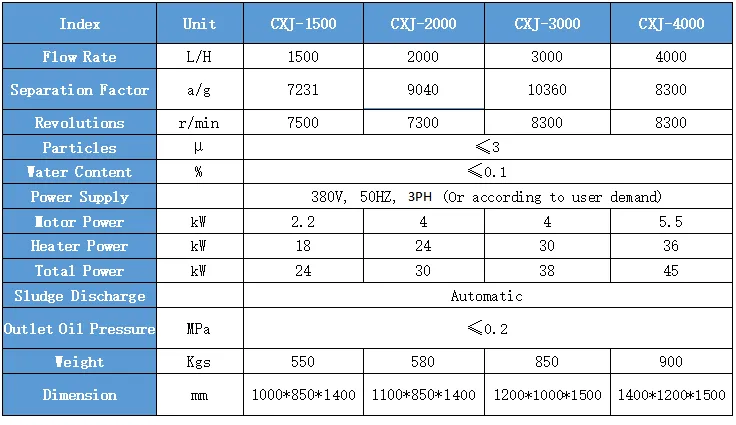

Parameter:
